Assigning a Room

This task is only available if the Predefine Conference Room Inventory checkbox on the General Setup screen is unchecked.

As of 7.4.1SP1, if the Start Date and End Date of a room assignment is the same as the Begin Date & Time and End Date & Time of the meeting product (defined on the General Setup screen), if you update the Start Date and/or End Date of a room assignment, the system will ask if you want to also update the Begin Date & Time and End Date & Time of the meeting product.

To assign a room:

1. Click Assign a Room from the Define the Product task category.

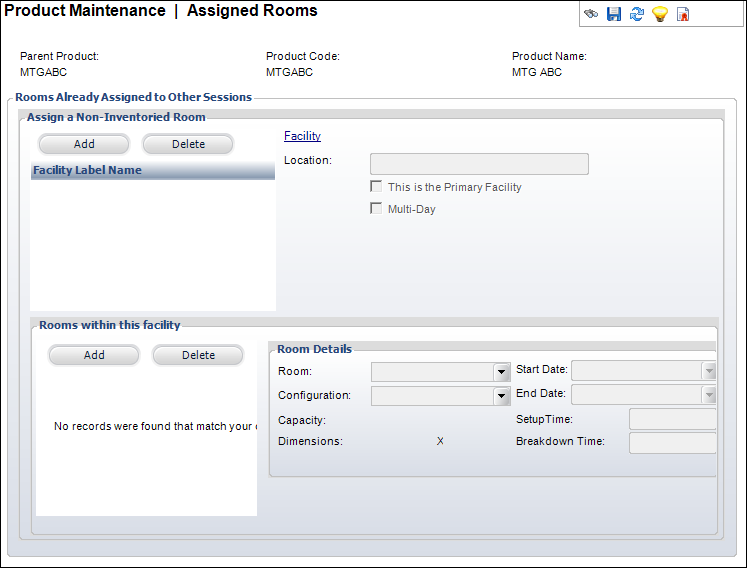

The Assigned Rooms screen displays, as shown below.

2. In the Assign a Non-Inventoried Room section, click Add.
The Facility Chooser screen displays.

3. Search for and select a facility.

4. If This is the Primary Facility, check the checkbox.

5. In the Rooms within this facility section, click Add.

6. Select the Room from the drop-down.

7. If necessary, select the Configuration from the drop-down.

8. Select the Start Date and End Date from the drop-downs.

9. Enter the Setup Time.

10. Enter the Breakdown Time.

11. Click Save.

Screen Element	Description
Assign a Non-Inventoried Room
Add	Button. When clicked, a row is added to the Rooms Already Assigned to Other Sessions table and the corresponding fields are enabled to assign a room.
Delete	Button. When clicked, the highlighted row from the table and the information entered in the Assign a Non-Inventoried Room fields are deleted.
Facility	Link. Opens the Facility Chooser screen to search for a facility.
This is the Primary Facility	Checkbox. When checked, indicates the facility is a primary facility for the meeting since you can have multiple facilities for one meeting. If you selected a facility on the General Setup screen, then that facility is considered the primary facility and this field is read-only.
Multi-Day	Read-only. The value displayed here depends on if you checked the Multi-Day checkbox on the General Setup screen.
Rooms within this facility
Add	Button. When clicked, a row is added to the Facility Room ID table and the corresponding fields are enabled to associate a room with the facility.
Delete	Button. When clicked, the highlighted row from the table and the information entered are deleted.
Room	Drop-down. Select a defined meeting room, e.g., Banquet Hall, Conference Room, Ballroom, Classroom. The options available depend on the room types selected on the Facility Setup screen. In order for a session floor map to display on the mobile device, the room selected must correspond with the defined floor map. See Linking Exhibitor Floor Mappings for more information.
Configuration	Drop-down. A code used to describe the configuration of the meeting room selected, e.g., square, round, rectangular, triangular, oblong. This can also reference the seating arrangement, such as classroom, lecture, theater, etc. The options available depend on the room types selected on the Facility Setup screen.
Capacity	Read-only. In accordance with fire safety standards and the configuration, this field represents the maximum number of people permitted in this room for the meeting. This automatically populates based on the information entered on the Facility Setup screen.
Dimensions	Read-only. The dimensions of the room as defined on the Facility Setup screen.
Start Date	Drop-down. The begin date the room will be used.
End Date	Drop-down. The date the room is no longer needed.
Setup Time	Text box. The time in minutes it takes to set up the room for different setups/configurations. Used for scheduling purposes by the meeting planner.
Breakdown Time	Text box. The time in minutes it takes to dismantle the setup/configuration for the room. Used for scheduling purposes by the meeting planner.
