Medium Implementation for BusinessObjects

The medium implementation configuration consists of the following:

·            Designed for organizations that plan on having 20 to 50 concurrent users.

·            Requires the following software:

·            Personify Enterprise

·            BusinessObjects: Enterprise XI 3.1 SP2 Premium, Web Intelligence, Xcelsius (Optional), and Data Integration Starter (Optional)

·            Data Analyzer

·            Analytics Advantage Package(s)

·            Requires 4 hardware servers (2 new, 2 existing):

·            [Box 1 - Existing] TRS

·            [Box 2] BusinessObjects Enterprise and Data Integrator Starter

·            [Box 3 - Existing] Personify Database Server (MS SQL Server)

·            [Box 4 - Required for Analytics Advantage] SQL Server and Advantage Data Mart

·            Requires the following server specifications:

·            [Box 2 & 4] 2 modern CPUs, 72 GB Hard Drive, minimum of 2 GB RAM

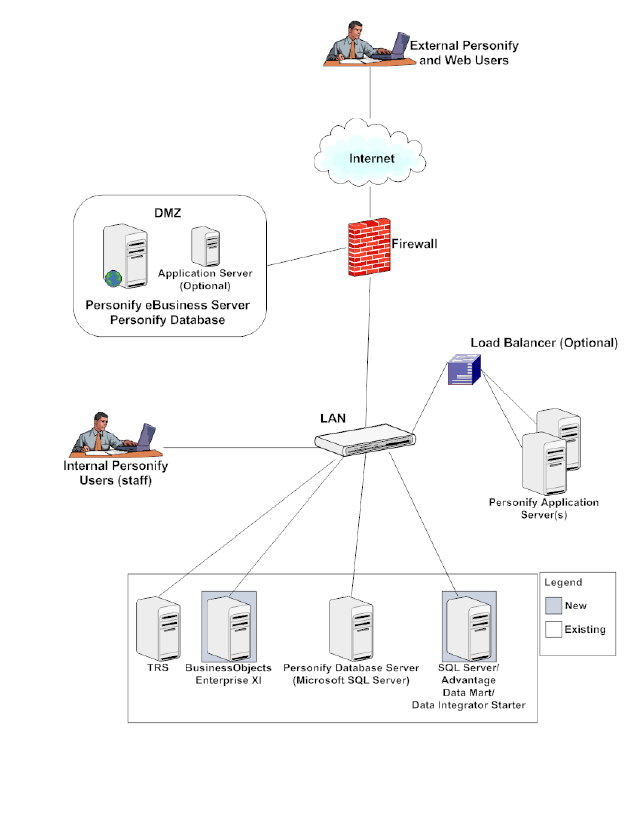

The following diagram illustrates a sample configuration of a medium implementation and its architecture:
