The large implementation configuration consists of the following:
· Designed for organizations that plan on having 50 or more concurrent users.
· Requires the following software:
· Personify Enterprise
· BusinessObjects: Enterprise XI 3.1 SP2 Premium, Web Intelligence (Optional), Dashboard Manager (Optional), and Data Integration Starter (Optional)
· Data Analyzer
· Analytics Advantage Package(s)
· Requires 6 hardware servers (4 new, 2 existing):
· [Box 1 - Existing] TRS
· [Box 2] BusinessObjects Enterprise XI 3.1 SP2
· [Box 3] Data Analyzer / BusinessObjects Web Intelligence
· [Box 4 - Required for Analytics Advantage] BusinessObjects Data Integrator Starter
· [Box 5- Existing] Personify Database Server (MS SQL Server)
· [Box 6 - Required for Analytics Advantage] SQL Server and Advantage Data Mart
· Requires the following server specifications:
· [Box 2, 3, 4 & 6] 2 modern CPUs, 146 GB Hard Drive, minimum of 4 GB RAM

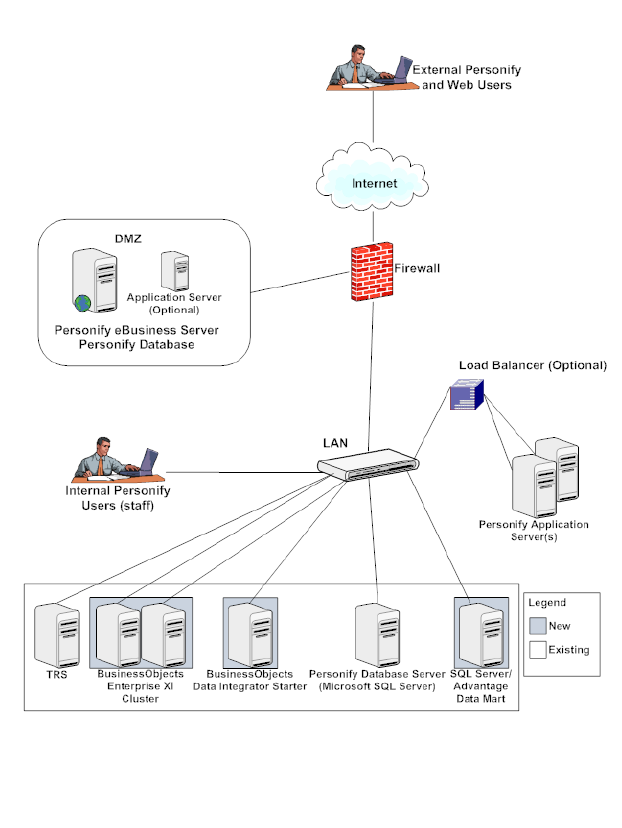

The following diagram illustrates a sample configuration of a large implementation and its architecture:
